Shared filesystem

The steps within a pipeline can communicate with each other via the filesystem.

Train and Deploy Example

This example demonstrates how to set up a pipeline using the Lightning SDK to train a model and deploy a server application. By leveraging a shared filesystem within a Studio environment, the pipeline executes a training job and subsequently deploys the model on a server, showcasing seamless integration and operation.

Initialize the StudioWe start by importing necessary classes from the lightning_sdk and create an instance of the Studio class with the name 'train_and_deploy'.Clone the code in the StudioAfter starting the Studio, clone the "pipeline demo" repoTraining Job from the StudioCreate a training "job" that would execute the train.py file from the StudioDeployment Job from the StudioCreate a deployment "job" that would execute the server.py file from the StudioInitialize the Pipeline and RunCreate a "train_and_deploy" pipeline with shared filesystem enabled and run it

1/5

2/5

3/5

4/5

5/5

from lightning_sdk.pipeline import Pipeline, JobStep, DeploymentStep, Studio

studio = Studio(name="train_and_deploy")

studio.start()
studio.run("git clone https://github.com/tchaton/pipeline_demo.git")

train_job = JobStep(
  command="python pipeline_demo/train.py",
  studio=studio
)

deploy_job = DeploymentStep(
  command="python pipeline_demo/server.py",
  ports=[8000],
  studio=studio
)

pipeline = Pipeline(
    name='train_and_deploy',
    shared_filesystem=True, # Create a shared filesystem (s3_folder, gcp_folder, EFS, etc... depending on the tier)
)
pipeline.run(steps=[train_job, deploy_job])

In the train.py and server.py files of the https://github.com/tchaton/pipeline_demo.git repository, the location for saving or loading weights will utilize the PIPELINE_SHARED_PATH environment variable if it is defined. This allows for convenient sharing of data and model artifacts between different steps in the pipeline by specifying a common path.

import os

pipeline_shared_path = os.getenv('PIPELINE_SHARED_PATH', "")
checkpoint_path = os.path.join(pipeline_shared_path, "model.ckpt") if pipeline_shared_path else "model.ckpt"

When running this code, you would see the following:

> python examples/pipeline.py

────────────────────────────────────────────────────────────
✅ Pipeline 'train-and-deploy' created successfully!
────────────────────────────────────────────────────────────

Workflow Steps:
  ➡️ 1. Job 'step-0' - (runs first)
  ➡️ 2. Deployment 'step-1' -  waits for step-0

🗓️ Schedules:
  - No schedules defined.

Cloud account:
  - yabbering-purple-59op

Shared filesystem: True
  - /teamspace/s3_folders/pipelines-yabbering-purple-59op

────────────────────────────────────────────────────────────
🔗 View your pipeline in the browser:
   http://lightning.ai/lightning.ai/pipeline-demo/pipelines/train-and-deploy?app_id=pipeline
────────────────────────────────────────────────────────────

Resulting pipeline

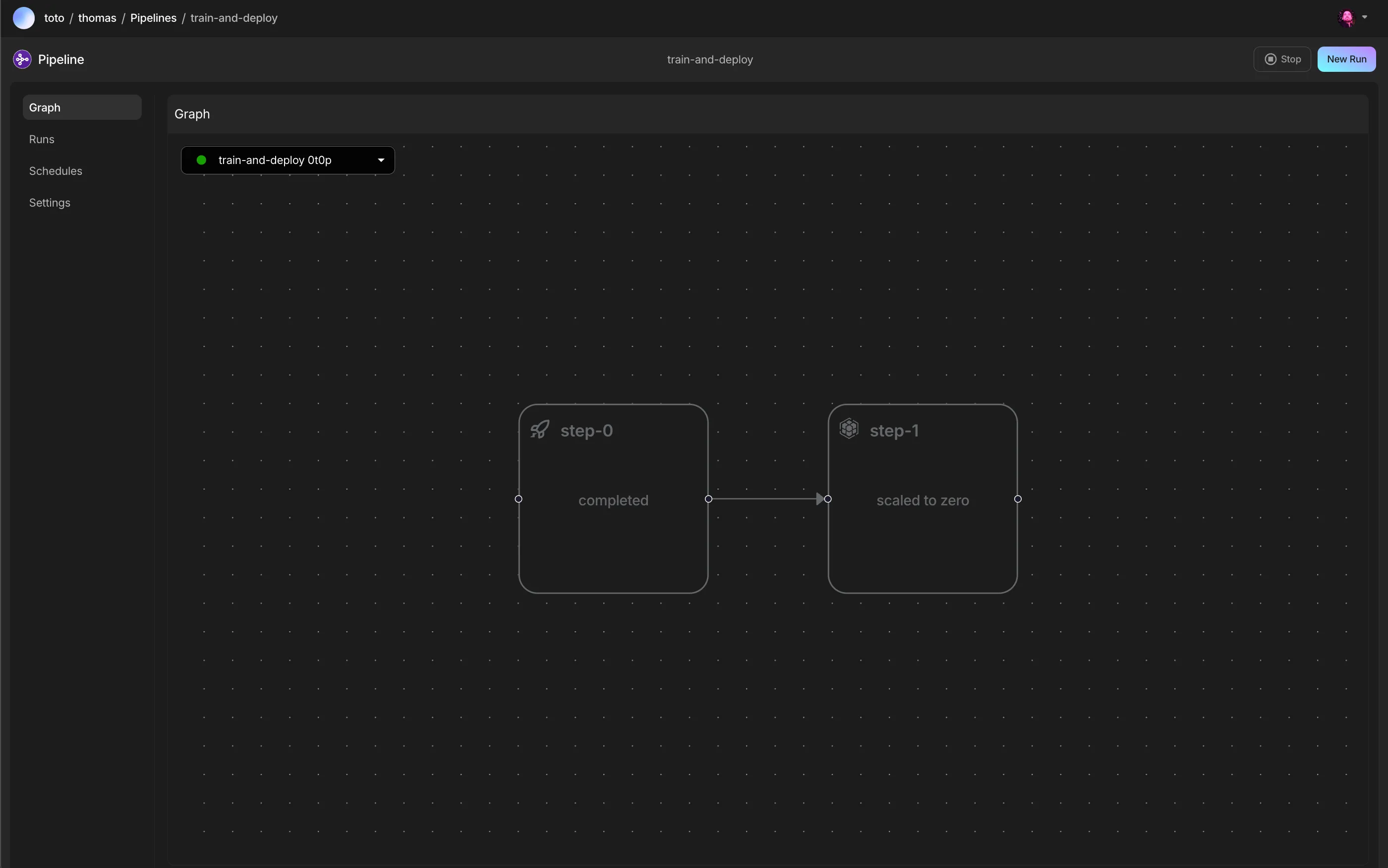

The pipeline contains 2 steps: the training job and the deployment Job

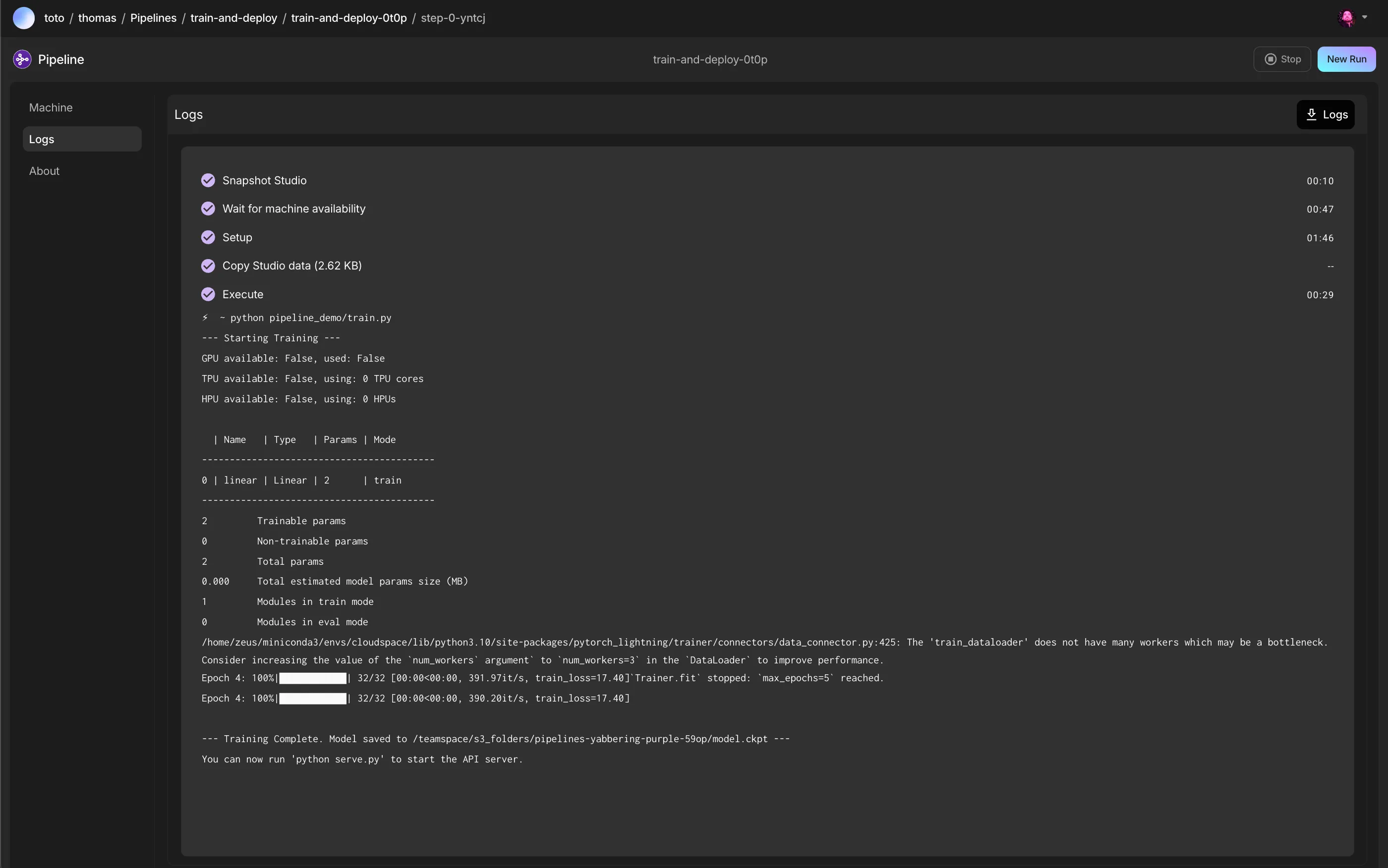

The training job completed successfully after saving the weights to the shared filesystem

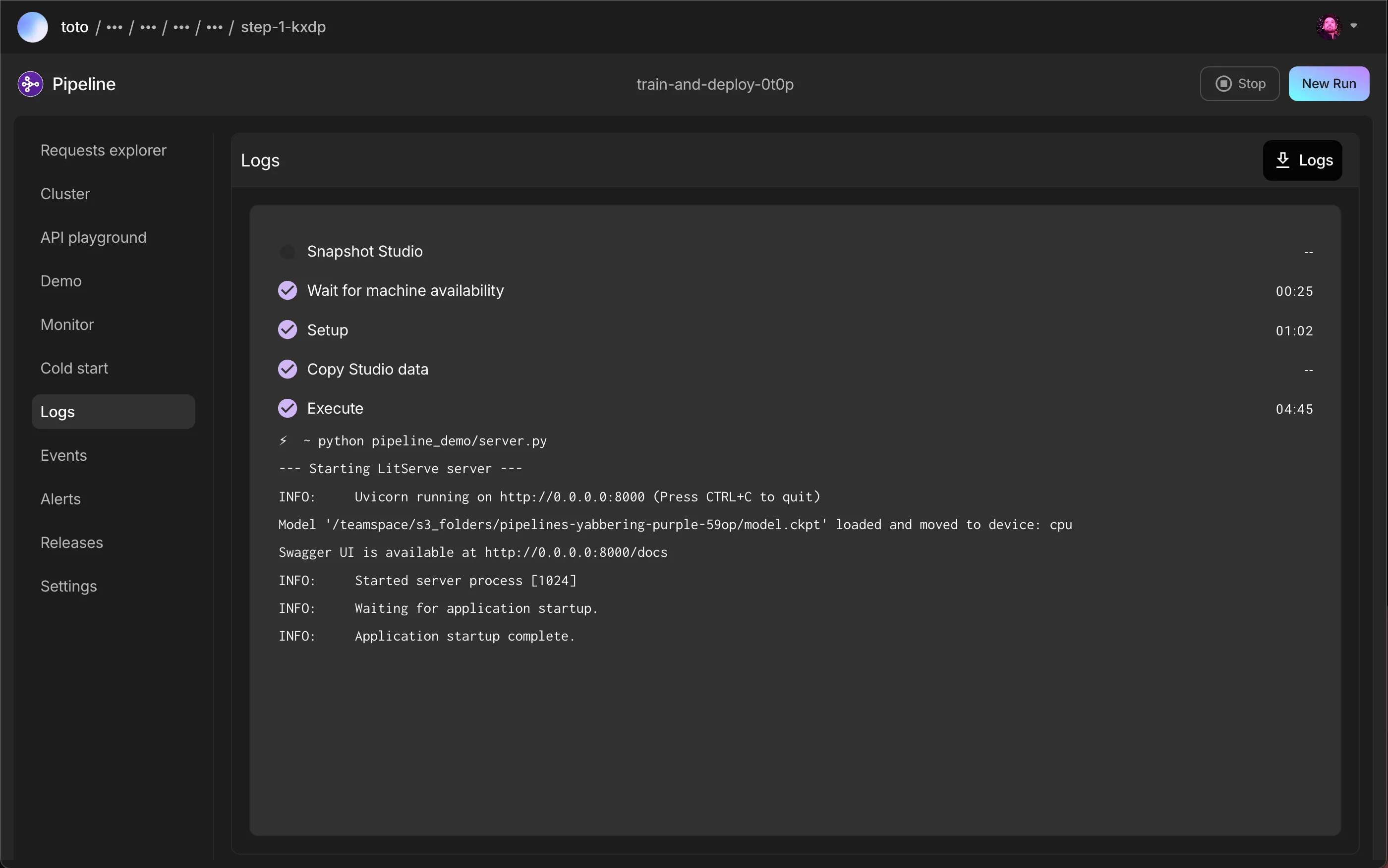

The deployment job loaded the weights from the shared filesystem, served the model and successfully auto scaled down to zero replica due to inactivity
