Step-by-step walk-through

This guide will walk you through the core pieces of PyTorch Lightning.

We’ll accomplish the following:

  • Implement an MNIST classifier.

  • Use inheritance to implement an AutoEncoder

Note

Any DL/ML PyTorch project fits into the Lightning structure. Here we just focus on 3 types of research to illustrate.


From MNIST to AutoEncoders

Installing Lightning

Lightning is trivial to install. We recommend using conda environments

conda activate my_env
pip install pytorch-lightning

Or without conda environments, use pip.

pip install pytorch-lightning

Or conda.

conda install pytorch-lightning -c conda-forge

The research

The Model

The lightning module holds all the core research ingredients:

  • The model

  • The optimizers

  • The train/ val/ test steps

Let’s first start with the model. In this case, we’ll design a 3-layer neural network.

import torch
from torch.nn import functional as F
from torch import nn
from pytorch_lightning.core.lightning import LightningModule


class LitMNIST(LightningModule):
    def __init__(self):
        super().__init__()

        # mnist images are (1, 28, 28) (channels, height, width)
        self.layer_1 = nn.Linear(28 * 28, 128)
        self.layer_2 = nn.Linear(128, 256)
        self.layer_3 = nn.Linear(256, 10)

    def forward(self, x):
        batch_size, channels, height, width = x.size()

        # (b, 1, 28, 28) -> (b, 1*28*28)
        x = x.view(batch_size, -1)
        x = self.layer_1(x)
        x = F.relu(x)
        x = self.layer_2(x)
        x = F.relu(x)
        x = self.layer_3(x)

        x = F.log_softmax(x, dim=1)
        return x

Notice this is a lightning module instead of a torch.nn.Module. A LightningModule is equivalent to a pure PyTorch Module except it has added functionality. However, you can use it EXACTLY the same as you would a PyTorch Module.

net = LitMNIST()
x = torch.randn(1, 1, 28, 28)
out = net(x)

Out:

torch.Size([1, 10])

Now we add the training_step which has all our training loop logic

class LitMNIST(LightningModule):
    def training_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x)
        loss = F.nll_loss(logits, y)
        return loss

Data

Lightning operates on pure dataloaders. Here’s the PyTorch code for loading MNIST.

from torch.utils.data import DataLoader, random_split
from torchvision.datasets import MNIST
import os
from torchvision import datasets, transforms

# transforms
# prepare transforms standard to MNIST
transform = transforms.Compose([transforms.ToTensor(), transforms.Normalize((0.1307,), (0.3081,))])

# data
mnist_train = MNIST(os.getcwd(), train=True, download=True, transform=transform)
mnist_train = DataLoader(mnist_train, batch_size=64)

You can use DataLoaders in 3 ways:

1. Pass DataLoaders to .fit()

Pass in the dataloaders to the .fit() function.

model = LitMNIST()
trainer = Trainer()
trainer.fit(model, mnist_train)
2. LightningModule DataLoaders

For fast research prototyping, it might be easier to link the model with the dataloaders.

class LitMNIST(pl.LightningModule):
    def train_dataloader(self):
        # transforms
        # prepare transforms standard to MNIST
        transform = transforms.Compose([transforms.ToTensor(), transforms.Normalize((0.1307,), (0.3081,))])
        # data
        mnist_train = MNIST(os.getcwd(), train=True, download=True, transform=transform)
        return DataLoader(mnist_train, batch_size=64)

    def val_dataloader(self):
        transforms = ...
        mnist_val = ...
        return DataLoader(mnist_val, batch_size=64)

    def test_dataloader(self):
        transforms = ...
        mnist_test = ...
        return DataLoader(mnist_test, batch_size=64)

DataLoaders are already in the model, no need to specify on .fit().

model = LitMNIST()
trainer = Trainer()
trainer.fit(model)
Models defined by data

When your models need to know about the data, it’s best to process the data before passing it to the model.

# init dm AND call the processing manually
dm = ImagenetDataModule()
dm.prepare_data()
dm.setup()

model = LitModel(out_features=dm.num_classes, img_width=dm.img_width, img_height=dm.img_height)
trainer.fit(model, dm)
  1. use prepare_data() to download and process the dataset.

  2. use setup() to do splits, and build your model internals

An alternative to using a DataModule is to defer initialization of the models modules to the setup method of your LightningModule as follows:

class LitMNIST(LightningModule):
    def __init__(self):
        self.l1 = None

    def prepare_data(self):
        download_data()
        tokenize()

    def setup(self, stage: Optional[str] = None):
        # stage is either 'fit', 'validate', 'test', or 'predict'. 90% of the time not relevant
        data = load_data()
        num_classes = data.classes
        self.l1 = nn.Linear(..., num_classes)

Optimizer

Next we choose what optimizer to use for training our system. In PyTorch we do it as follows:

from torch.optim import Adam

optimizer = Adam(LitMNIST().parameters(), lr=1e-3)

In Lightning we do the same but organize it under the configure_optimizers() method.

class LitMNIST(LightningModule):
    def configure_optimizers(self):
        return Adam(self.parameters(), lr=1e-3)

Note

The LightningModule itself has the parameters, so pass in self.parameters()

However, if you have multiple optimizers use the matching parameters

class LitMNIST(LightningModule):
    def configure_optimizers(self):
        return Adam(self.generator(), lr=1e-3), Adam(self.discriminator(), lr=1e-3)

Training step

The training step is what happens inside the training loop.

for epoch in epochs:
    for batch in data:
        # TRAINING STEP
        # ....
        # TRAINING STEP
        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

In the case of MNIST, we do the following

for epoch in epochs:
    for batch in data:
        # ------ TRAINING STEP START ------
        x, y = batch
        logits = model(x)
        loss = F.nll_loss(logits, y)
        # ------ TRAINING STEP END ------

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()

In Lightning, everything that is in the training step gets organized under the training_step() function in the LightningModule.

class LitMNIST(LightningModule):
    def training_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x)
        loss = F.nll_loss(logits, y)
        return loss

Again, this is the same PyTorch code except that it has been organized by the LightningModule. This code is not restricted which means it can be as complicated as a full seq-2-seq, RL loop, GAN, etc…


The engineering

Training

So far we defined 4 key ingredients in pure PyTorch but organized the code with the LightningModule.

  1. Model.

  2. Training data.

  3. Optimizer.

  4. What happens in the training loop.


For clarity, we’ll recall that the full LightningModule now looks like this.

class LitMNIST(LightningModule):
    def __init__(self):
        super().__init__()
        self.layer_1 = nn.Linear(28 * 28, 128)
        self.layer_2 = nn.Linear(128, 256)
        self.layer_3 = nn.Linear(256, 10)

    def forward(self, x):
        batch_size, channels, height, width = x.size()
        x = x.view(batch_size, -1)
        x = self.layer_1(x)
        x = F.relu(x)
        x = self.layer_2(x)
        x = F.relu(x)
        x = self.layer_3(x)
        x = F.log_softmax(x, dim=1)
        return x

    def training_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x)
        loss = F.nll_loss(logits, y)
        return loss

Again, this is the same PyTorch code, except that it’s organized by the LightningModule.

Logging

To log to Tensorboard, your favorite logger, and/or the progress bar, use the log() method which can be called from any method in the LightningModule.

def training_step(self, batch, batch_idx):
    self.log("my_metric", x)

The log() method has a few options:

  • on_step (logs the metric at that step in training)

  • on_epoch (automatically accumulates and logs at the end of the epoch)

  • prog_bar (logs to the progress bar)

  • logger (logs to the logger like Tensorboard)

Depending on where the log is called from, Lightning auto-determines the correct mode for you. But of course you can override the default behavior by manually setting the flags.

Note

Setting on_epoch=True will accumulate your logged values over the full training epoch.

def training_step(self, batch, batch_idx):
    self.log("my_loss", loss, on_step=True, on_epoch=True, prog_bar=True, logger=True)

You can also use any method of your logger directly:

def training_step(self, batch, batch_idx):
    tensorboard = self.logger.experiment
    tensorboard.any_summary_writer_method_you_want()

Once your training starts, you can view the logs by using your favorite logger or booting up the Tensorboard logs:

tensorboard --logdir ./lightning_logs

Which will generate automatic tensorboard logs (or with the logger of your choice).

mnist CPU bar

But you can also use any of the number of other loggers we support.

Train on CPU
from pytorch_lightning import Trainer

model = LitMNIST()
trainer = Trainer()
trainer.fit(model, train_loader)

You should see the following weights summary and progress bar

mnist CPU bar
Train on GPU

But the beauty is all the magic you can do with the trainer flags. For instance, to run this model on a GPU:

model = LitMNIST()
trainer = Trainer(gpus=1)
trainer.fit(model, train_loader)
mnist GPU bar
Train on Multi-GPU

Or you can also train on multiple GPUs.

model = LitMNIST()
trainer = Trainer(gpus=8)
trainer.fit(model, train_loader)

Or multiple nodes

# (32 GPUs)
model = LitMNIST()
trainer = Trainer(gpus=8, num_nodes=4, strategy="ddp")
trainer.fit(model, train_loader)

Refer to the distributed computing guide for more details.

Train on TPUs

Did you know you can use PyTorch on TPUs? It’s very hard to do, but we’ve worked with the xla team to use their awesome library to get this to work out of the box!

Let’s train on Colab (full demo available here)

First, change the runtime to TPU (and reinstall lightning).

mnist GPU bar
mnist GPU bar

Next, install the required xla library (adds support for PyTorch on TPUs)

!pip install cloud-tpu-client==0.10 https://storage.googleapis.com/tpu-pytorch/wheels/torch_xla-1.8-cp37-cp37m-linux_x86_64.whl

In distributed training (multiple GPUs and multiple TPU cores) each GPU or TPU core will run a copy of this program. This means that without taking any care you will download the dataset N times which will cause all sorts of issues.

To solve this problem, make sure your download code is in the prepare_data method in the DataModule. In this method we do all the preparation we need to do once (instead of on every GPU).

prepare_data can be called in two ways, once per node or only on the root node (Trainer(prepare_data_per_node=False)).

class MNISTDataModule(LightningDataModule):
    def __init__(self, batch_size=64):
        super().__init__()
        self.batch_size = batch_size

    def prepare_data(self):
        # download only
        MNIST(os.getcwd(), train=True, download=True, transform=transforms.ToTensor())
        MNIST(os.getcwd(), train=False, download=True, transform=transforms.ToTensor())

    def setup(self, stage: Optional[str] = None):
        # transform
        transform = transforms.Compose([transforms.ToTensor()])
        mnist_train = MNIST(os.getcwd(), train=True, download=False, transform=transform)
        mnist_test = MNIST(os.getcwd(), train=False, download=False, transform=transform)

        # train/val split
        mnist_train, mnist_val = random_split(mnist_train, [55000, 5000])

        # assign to use in dataloaders
        self.train_dataset = mnist_train
        self.val_dataset = mnist_val
        self.test_dataset = mnist_test

    def train_dataloader(self):
        return DataLoader(self.train_dataset, batch_size=self.batch_size)

    def val_dataloader(self):
        return DataLoader(self.val_dataset, batch_size=self.batch_size)

    def test_dataloader(self):
        return DataLoader(self.test_dataset, batch_size=self.batch_size)

The prepare_data method is also a good place to do any data processing that needs to be done only once (ie: download or tokenize, etc…).

Note

Lightning inserts the correct DistributedSampler for distributed training. No need to add yourself!

Now we can train the LightningModule on a TPU without doing anything else!

dm = MNISTDataModule()
model = LitMNIST()
trainer = Trainer(tpu_cores=8)
trainer.fit(model, dm)

You’ll now see the TPU cores booting up.

TPU start

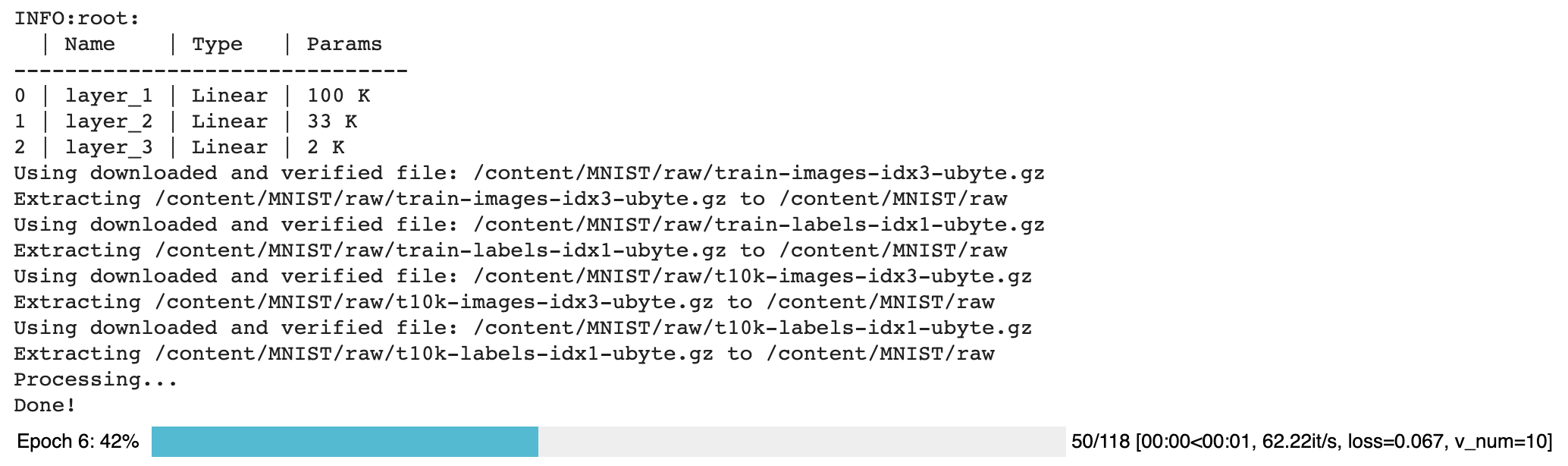

Notice the epoch is MUCH faster!

TPU speed

Hyperparameters

Lightning has utilities to interact seamlessly with the command line ArgumentParser and plays well with the hyperparameter optimization framework of your choice.


ArgumentParser

Lightning is designed to augment a lot of the functionality of the built-in Python ArgumentParser

from argparse import ArgumentParser

parser = ArgumentParser()
parser.add_argument("--layer_1_dim", type=int, default=128)
args = parser.parse_args()

This allows you to call your program like so:

python trainer.py --layer_1_dim 64

Argparser Best Practices

It is best practice to layer your arguments in three sections.

  1. Trainer args (gpus, num_nodes, etc…)

  2. Model specific arguments (layer_dim, num_layers, learning_rate, etc…)

  3. Program arguments (data_path, cluster_email, etc…)


We can do this as follows. First, in your LightningModule, define the arguments specific to that module. Remember that data splits or data paths may also be specific to a module (i.e.: if your project has a model that trains on Imagenet and another on CIFAR-10).

class LitModel(LightningModule):
    @staticmethod
    def add_model_specific_args(parent_parser):
        parser = parent_parser.add_argument_group("LitModel")
        parser.add_argument("--encoder_layers", type=int, default=12)
        parser.add_argument("--data_path", type=str, default="/some/path")
        return parent_parser

Now in your main trainer file, add the Trainer args, the program args, and add the model args

# ----------------
# trainer_main.py
# ----------------
from argparse import ArgumentParser

parser = ArgumentParser()

# add PROGRAM level args
parser.add_argument("--conda_env", type=str, default="some_name")
parser.add_argument("--notification_email", type=str, default="[email protected]")

# add model specific args
parser = LitModel.add_model_specific_args(parser)

# add all the available trainer options to argparse
# ie: now --gpus --num_nodes ... --fast_dev_run all work in the cli
parser = Trainer.add_argparse_args(parser)

args = parser.parse_args()

Now you can call run your program like so:

python trainer_main.py --gpus 2 --num_nodes 2 --conda_env 'my_env' --encoder_layers 12

Finally, make sure to start the training like so:

# init the trainer like this
trainer = Trainer.from_argparse_args(args, early_stopping_callback=...)

# NOT like this
trainer = Trainer(gpus=hparams.gpus, ...)

# init the model with Namespace directly
model = LitModel(args)

# or init the model with all the key-value pairs
dict_args = vars(args)
model = LitModel(**dict_args)

LightningModule hyperparameters

Often times we train many versions of a model. You might share that model or come back to it a few months later at which point it is very useful to know how that model was trained (i.e.: what learning rate, neural network, etc…).

Lightning has a few ways of saving that information for you in checkpoints and yaml files. The goal here is to improve readability and reproducibility.

  1. Using save_hyperparameters() within your LightningModule __init__ function will enable Lightning to store all the provided arguments within the self.hparams attribute. These hyper-parameters will also be stored within the model checkpoint, which simplifies model re-instantiation in production settings. This also makes those values available via self.hparams.

    class LitMNIST(LightningModule):
        def __init__(self, layer_1_dim=128, learning_rate=1e-2, **kwargs):
            super().__init__()
            # call this to save (layer_1_dim=128, learning_rate=1e-4) to the checkpoint
            self.save_hyperparameters()

            # equivalent
            self.save_hyperparameters("layer_1_dim", "learning_rate")

            # Now possible to access layer_1_dim from hparams
            self.hparams.layer_1_dim

  2. Sometimes your init might have objects or other parameters you might not want to save. In that case, choose only a few

    class LitMNIST(LightningModule):
        def __init__(self, loss_fx, generator_network, layer_1_dim=128 ** kwargs):
            super().__init__()
            self.layer_1_dim = layer_1_dim
            self.loss_fx = loss_fx

            # call this to save (layer_1_dim=128) to the checkpoint
            self.save_hyperparameters("layer_1_dim")


    # to load specify the other args
    model = LitMNIST.load_from_checkpoint(PATH, loss_fx=torch.nn.SomeOtherLoss, generator_network=MyGenerator())

  3. You can also convert full objects such as dict or Namespace to hparams so they get saved to the checkpoint.

    class LitMNIST(LightningModule):
        def __init__(self, conf: Optional[Union[Dict, Namespace, DictConfig]] = None, **kwargs):
            super().__init__()
            # save the config and any extra arguments
            self.save_hyperparameters(conf)
            self.save_hyperparameters(kwargs)

            self.layer_1 = nn.Linear(28 * 28, self.hparams.layer_1_dim)
            self.layer_2 = nn.Linear(self.hparams.layer_1_dim, self.hparams.layer_2_dim)
            self.layer_3 = nn.Linear(self.hparams.layer_2_dim, 10)


    conf = {...}
    # OR
    # conf = parser.parse_args()
    # OR
    # conf = OmegaConf.create(...)
    model = LitMNIST(conf=conf, anything=10)

    # Now possible to access any stored variables from hparams
    model.hparams.anything

    # for this to work, you need to access with `self.hparams.layer_1_dim`, not `conf.layer_1_dim`
    model = LitMNIST.load_from_checkpoint(PATH)


Trainer args

To recap, add ALL possible trainer flags to the argparser and init the Trainer this way

parser = ArgumentParser()
parser = Trainer.add_argparse_args(parser)
hparams = parser.parse_args()

trainer = Trainer.from_argparse_args(hparams)

# or if you need to pass in callbacks
trainer = Trainer.from_argparse_args(hparams, enable_checkpointing=..., callbacks=[...])

Multiple Lightning Modules

We often have multiple Lightning Modules where each one has different arguments. Instead of polluting the main.py file, the LightningModule lets you define arguments for each one.

class LitMNIST(LightningModule):
    def __init__(self, layer_1_dim, **kwargs):
        super().__init__()
        self.layer_1 = nn.Linear(28 * 28, layer_1_dim)

    @staticmethod
    def add_model_specific_args(parent_parser):
        parser = parent_parser.add_argument_group("LitMNIST")
        parser.add_argument("--layer_1_dim", type=int, default=128)
        return parent_parser
class GoodGAN(LightningModule):
    def __init__(self, encoder_layers, **kwargs):
        super().__init__()
        self.encoder = Encoder(layers=encoder_layers)

    @staticmethod
    def add_model_specific_args(parent_parser):
        parser = parent_parser.add_argument_group("GoodGAN")
        parser.add_argument("--encoder_layers", type=int, default=12)
        return parent_parser

Now we can allow each model to inject the arguments it needs in the main.py

def main(args):
    dict_args = vars(args)

    # pick model
    if args.model_name == "gan":
        model = GoodGAN(**dict_args)
    elif args.model_name == "mnist":
        model = LitMNIST(**dict_args)

    trainer = Trainer.from_argparse_args(args)
    trainer.fit(model)


if __name__ == "__main__":
    parser = ArgumentParser()
    parser = Trainer.add_argparse_args(parser)

    # figure out which model to use
    parser.add_argument("--model_name", type=str, default="gan", help="gan or mnist")

    # THIS LINE IS KEY TO PULL THE MODEL NAME
    temp_args, _ = parser.parse_known_args()

    # let the model add what it wants
    if temp_args.model_name == "gan":
        parser = GoodGAN.add_model_specific_args(parser)
    elif temp_args.model_name == "mnist":
        parser = LitMNIST.add_model_specific_args(parser)

    args = parser.parse_args()

    # train
    main(args)

and now we can train MNIST or the GAN using the command line interface!

$ python main.py --model_name gan --encoder_layers 24
$ python main.py --model_name mnist --layer_1_dim 128

Validating

For most cases, we stop training the model when the performance on a validation split of the data reaches a minimum.

Just like the training_step, we can define a validation_step to check whatever metrics we care about, generate samples, or add more to our logs.

def validation_step(self, batch, batch_idx):
    loss = MSE_loss(...)
    self.log("val_loss", loss)

Now we can train with a validation loop as well.

from pytorch_lightning import Trainer

model = LitMNIST()
trainer = Trainer(tpu_cores=8)
trainer.fit(model, train_loader, val_loader)

You may have noticed the words Validation sanity check logged. This is because Lightning runs 2 batches of validation before starting to train. This is a kind of unit test to make sure that if you have a bug in the validation loop, you won’t need to potentially wait for a full epoch to find out.

Note

Lightning disables gradients, puts model in eval mode, and does everything needed for validation.

Val loop under the hood

Under the hood, Lightning does the following:

model = Model()
model.train()
torch.set_grad_enabled(True)

for epoch in epochs:
    for batch in data:
        # train
        ...

    # validate
    model.eval()
    torch.set_grad_enabled(False)

    outputs = []
    for batch in val_data:
        x, y = batch  # validation_step
        y_hat = model(x)  # validation_step
        loss = loss(y_hat, x)  # validation_step
        outputs.append({"val_loss": loss})  # validation_step

    total_loss = outputs.mean()  # validation_epoch_end
Optional methods

If you still need even more fine-grain control, define the other optional methods for the loop.

def validation_step(self, batch, batch_idx):
    preds = ...
    return preds


def validation_epoch_end(self, val_step_outputs):
    for pred in val_step_outputs:
        # do something with all the predictions from each validation_step
        ...

Testing

Once our research is done and we’re about to publish or deploy a model, we normally want to figure out how it will generalize in the “real world.” For this, we use a held-out split of the data for testing.

Just like the validation loop, we define a test loop

class LitMNIST(LightningModule):
    def test_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x)
        loss = F.nll_loss(logits, y)
        self.log("test_loss", loss)

However, to make sure the test set isn’t used inadvertently, Lightning has a separate API to run tests. Once you train your model simply call .test().

from pytorch_lightning import Trainer

model = LitMNIST()
trainer = Trainer(tpu_cores=8)
trainer.fit(model)

# run test set
result = trainer.test()
print(result)

Out:

--------------------------------------------------------------
TEST RESULTS
{'test_loss': 1.1703}
--------------------------------------------------------------

You can also run the test from a saved lightning model

model = LitMNIST.load_from_checkpoint(PATH)
trainer = Trainer(tpu_cores=8)
trainer.test(model)

Note

Lightning disables gradients, puts model in eval mode, and does everything needed for testing.

Warning

.test() is not stable yet on TPUs. We’re working on getting around the multiprocessing challenges.


Predicting

Again, a LightningModule is exactly the same as a PyTorch module. This means you can load it and use it for prediction.

model = LitMNIST.load_from_checkpoint(PATH)
x = torch.randn(1, 1, 28, 28)
out = model(x)

On the surface, it looks like forward and training_step are similar. Generally, we want to make sure that what we want the model to do is what happens in the forward. whereas the training_step likely calls forward from within it.

class MNISTClassifier(LightningModule):
    def forward(self, x):
        batch_size, channels, height, width = x.size()
        x = x.view(batch_size, -1)
        x = self.layer_1(x)
        x = F.relu(x)
        x = self.layer_2(x)
        x = F.relu(x)
        x = self.layer_3(x)
        x = F.log_softmax(x, dim=1)
        return x

    def training_step(self, batch, batch_idx):
        x, y = batch
        logits = self(x)
        loss = F.nll_loss(logits, y)
        return loss
model = MNISTClassifier()
x = mnist_image()
logits = model(x)

In this case, we’ve set this LightningModel to predict logits. But we could also have it predict feature maps:

class MNISTRepresentator(LightningModule):
    def forward(self, x):
        batch_size, channels, height, width = x.size()
        x = x.view(batch_size, -1)
        x = self.layer_1(x)
        x1 = F.relu(x)
        x = self.layer_2(x1)
        x2 = F.relu(x)
        x3 = self.layer_3(x2)
        return [x, x1, x2, x3]

    def training_step(self, batch, batch_idx):
        x, y = batch
        out, l1_feats, l2_feats, l3_feats = self(x)
        logits = F.log_softmax(out, dim=1)
        ce_loss = F.nll_loss(logits, y)
        loss = perceptual_loss(l1_feats, l2_feats, l3_feats) + ce_loss
        return loss
model = MNISTRepresentator.load_from_checkpoint(PATH)
x = mnist_image()
feature_maps = model(x)

Or maybe we have a model that we use to do generation. A LightningModule is also just a torch.nn.Module.

class LitMNISTDreamer(LightningModule):
    def forward(self, z):
        imgs = self.decoder(z)
        return imgs

    def training_step(self, batch, batch_idx):
        x, y = batch
        representation = self.encoder(x)
        imgs = self(representation)

        loss = perceptual_loss(imgs, x)
        return loss
model = LitMNISTDreamer.load_from_checkpoint(PATH)
z = sample_noise()
generated_imgs = model(z)

To perform inference at scale, it is possible to use predict() with predict_step() By default, predict_step() calls forward(), but it can be overridden to add any processing logic.

class LitMNISTDreamer(LightningModule):
    def forward(self, z):
        imgs = self.decoder(z)
        return imgs

    def predict_step(self, batch, batch_idx: int, dataloader_idx: int = None):
        return self(batch)


model = LitMNISTDreamer()
trainer.predict(model, datamodule)

How you split up what goes in forward() vs training_step() vs predict_step() depends on how you want to use this model for prediction. However, we recommend forward() to contain only tensor operations with your model. training_step() to encapsulate forward() logic with logging, metrics, and loss computation. predict_step() to encapsulate forward() with any necessary preprocess or postprocess functions.


The non-essentials

Extensibility

Although lightning makes everything super simple, it doesn’t sacrifice any flexibility or control. Lightning offers multiple ways of managing the training state.

Training overrides

Any part of the training, validation, and testing loop can be modified. For instance, if you wanted to do your own backward pass, you would override the default implementation

def backward(self, use_amp, loss, optimizer):
    loss.backward()

With your own

class LitMNIST(LightningModule):
    def backward(self, use_amp, loss, optimizer, optimizer_idx):
        # do a custom way of backward
        loss.backward(retain_graph=True)

Every single part of training is configurable this way. For a full list look at LightningModule.


Callbacks

Another way to add arbitrary functionality is to add a custom callback for hooks that you might care about

from pytorch_lightning.callbacks import Callback


class MyPrintingCallback(Callback):
    def on_init_start(self, trainer):
        print("Starting to init trainer!")

    def on_init_end(self, trainer):
        print("Trainer is init now")

    def on_train_end(self, trainer, pl_module):
        print("do something when training ends")

And pass the callbacks into the trainer

trainer = Trainer(callbacks=[MyPrintingCallback()])

Tip

See full list of 12+ hooks in the callbacks.


Child Modules

Research projects tend to test different approaches to the same dataset. This is very easy to do in Lightning with inheritance.

For example, imagine we now want to train an Autoencoder to use as a feature extractor for MNIST images. We are extending our Autoencoder from the LitMNIST-module which already defines all the dataloading. The only things that change in the Autoencoder model are the init, forward, training, validation and test step.

class Encoder(torch.nn.Module):
    pass


class Decoder(torch.nn.Module):
    pass


class AutoEncoder(LitMNIST):
    def __init__(self):
        super().__init__()
        self.encoder = Encoder()
        self.decoder = Decoder()
        self.metric = MSE()

    def forward(self, x):
        return self.encoder(x)

    def training_step(self, batch, batch_idx):
        x, _ = batch

        representation = self.encoder(x)
        x_hat = self.decoder(representation)

        loss = self.metric(x, x_hat)
        return loss

    def validation_step(self, batch, batch_idx):
        self._shared_eval(batch, batch_idx, "val")

    def test_step(self, batch, batch_idx):
        self._shared_eval(batch, batch_idx, "test")

    def _shared_eval(self, batch, batch_idx, prefix):
        x, _ = batch
        representation = self.encoder(x)
        x_hat = self.decoder(representation)

        loss = self.metric(x, x_hat)
        self.log(f"{prefix}_loss", loss)

and we can train this using the same trainer

autoencoder = AutoEncoder()
trainer = Trainer()
trainer.fit(autoencoder)

And remember that the forward method should define the practical use of a LightningModule. In this case, we want to use the AutoEncoder to extract image representations

some_images = torch.Tensor(32, 1, 28, 28)
representations = autoencoder(some_images)

Transfer Learning

Using Pretrained Models

Sometimes we want to use a LightningModule as a pretrained model. This is fine because a LightningModule is just a torch.nn.Module!

Note

Remember that a LightningModule is EXACTLY a torch.nn.Module but with more capabilities.

Let’s use the AutoEncoder as a feature extractor in a separate model.

class Encoder(torch.nn.Module):
    ...


class AutoEncoder(LightningModule):
    def __init__(self):
        self.encoder = Encoder()
        self.decoder = Decoder()


class CIFAR10Classifier(LightningModule):
    def __init__(self):
        # init the pretrained LightningModule
        self.feature_extractor = AutoEncoder.load_from_checkpoint(PATH)
        self.feature_extractor.freeze()

        # the autoencoder outputs a 100-dim representation and CIFAR-10 has 10 classes
        self.classifier = nn.Linear(100, 10)

    def forward(self, x):
        representations = self.feature_extractor(x)
        x = self.classifier(representations)
        ...

We used our pretrained Autoencoder (a LightningModule) for transfer learning!

Example: Imagenet (computer Vision)
import torchvision.models as models


class ImagenetTransferLearning(LightningModule):
    def __init__(self):
        super().__init__()

        # init a pretrained resnet
        backbone = models.resnet50(pretrained=True)
        num_filters = backbone.fc.in_features
        layers = list(backbone.children())[:-1]
        self.feature_extractor = nn.Sequential(*layers)

        # use the pretrained model to classify cifar-10 (10 image classes)
        num_target_classes = 10
        self.classifier = nn.Linear(num_filters, num_target_classes)

    def forward(self, x):
        self.feature_extractor.eval()
        with torch.no_grad():
            representations = self.feature_extractor(x).flatten(1)
        x = self.classifier(representations)
        ...

Finetune

model = ImagenetTransferLearning()
trainer = Trainer()
trainer.fit(model)

And use it to predict your data of interest

model = ImagenetTransferLearning.load_from_checkpoint(PATH)
model.freeze()

x = some_images_from_cifar10()
predictions = model(x)

We used a pretrained model on imagenet, finetuned on CIFAR-10 to predict on CIFAR-10. In the non-academic world we would finetune on a tiny dataset you have and predict on your dataset.

Example: BERT (NLP)

Lightning is completely agnostic to what’s used for transfer learning so long as it is a torch.nn.Module subclass.

Here’s a model that uses Huggingface transformers.

class BertMNLIFinetuner(LightningModule):
    def __init__(self):
        super().__init__()

        self.bert = BertModel.from_pretrained("bert-base-cased", output_attentions=True)
        self.W = nn.Linear(bert.config.hidden_size, 3)
        self.num_classes = 3

    def forward(self, input_ids, attention_mask, token_type_ids):

        h, _, attn = self.bert(input_ids=input_ids, attention_mask=attention_mask, token_type_ids=token_type_ids)

        h_cls = h[:, 0]
        logits = self.W(h_cls)
        return logits, attn

Why PyTorch Lightning

a. Less boilerplate

Research and production code starts with simple code, but quickly grows in complexity once you add GPU training, 16-bit, checkpointing, logging, etc…

PyTorch Lightning implements these features for you and tests them rigorously to make sure you can instead focus on the research idea.

Writing less engineering/bolierplate code means:

  • fewer bugs

  • faster iteration

  • faster prototyping

b. More functionality

In PyTorch Lightning you leverage code written by hundreds of AI researchers, research engs and PhDs from the world’s top AI labs, implementing all the latest best practices and SOTA features such as

  • GPU, Multi GPU, TPU training

  • Multi-node training

  • Auto logging

  • Gradient accumulation

c. Less error-prone

Why re-invent the wheel?

Use PyTorch Lightning to enjoy a deep learning structure that is rigorously tested (500+ tests) across CPUs/multi-GPUs/multi-TPUs on every pull-request.

We promise our collective team of 20+ from the top labs has thought about training more than you :)

d. Not a new library

PyTorch Lightning is organized PyTorch - no need to learn a new framework.

Learn how to convert from PyTorch to Lightning here.

Your projects WILL grow in complexity and you WILL end up engineering more than trying out new ideas… Defer the hardest parts to Lightning!


Lightning Philosophy

Lightning structures your deep learning code in 4 parts:

  • Research code

  • Engineering code

  • Non-essential code

  • Data code

Research code

In the MNIST generation example, the research code would be the particular system and how it’s trained (ie: A GAN or VAE or GPT).

l1 = nn.Linear(...)
l2 = nn.Linear(...)
decoder = Decoder()

x1 = l1(x)
x2 = l2(x2)
out = decoder(features, x)

loss = perceptual_loss(x1, x2, x) + CE(out, x)

In Lightning, this code is organized into a lightning module.

Engineering code

The Engineering code is all the code related to training this system. Things such as early stopping, distribution over GPUs, 16-bit precision, etc. This is normally code that is THE SAME across most projects.

model.cuda(0)
x = x.cuda(0)

distributed = DistributedParallel(model)

with gpu_zero:
    download_data()

dist.barrier()

In Lightning, this code is abstracted out by the trainer.

Non-essential code

This is code that helps the research but isn’t relevant to the research code. Some examples might be:

  1. Inspect gradients

  2. Log to tensorboard.


# log samples
z = Q.rsample()
generated = decoder(z)
self.experiment.log("images", generated)

In Lightning this code is organized into callbacks.

Data code

Lightning uses standard PyTorch DataLoaders or anything that gives a batch of data. This code tends to end up getting messy with transforms, normalization constants, and data splitting spread all over files.

# data
train = MNIST(...)
train, val = split(train, val)
test = MNIST(...)

# transforms
train_transforms = ...
val_transforms = ...
test_transforms = ...

# dataloader ...
# download with dist.barrier() for multi-gpu, etc...

This code gets especially complicated once you start doing multi-GPU training or needing info about the data to build your models.

In Lightning this code is organized inside a datamodules.

Tip

DataModules are optional but encouraged, otherwise you can use standard DataLoaders
